Anti-static nylon cylindrical brush
Grade: Industrial Grade
Warranty: Six months
Type: Cylindrical Brush
Customization Support: OEM, ODM
Origin: Anhui, China
Brand Name: JHX Brush
Brush Material: Nylon
Function: Cleaning and Polishing
Grade: Industrial Grade
Warranty: Six months
Type: Cylindrical Brush
Customization Support: OEM, ODM
Origin: Anhui, China
Brand Name: JHX Brush
Brush Material: Nylon
Function: Cleaning and Polishing

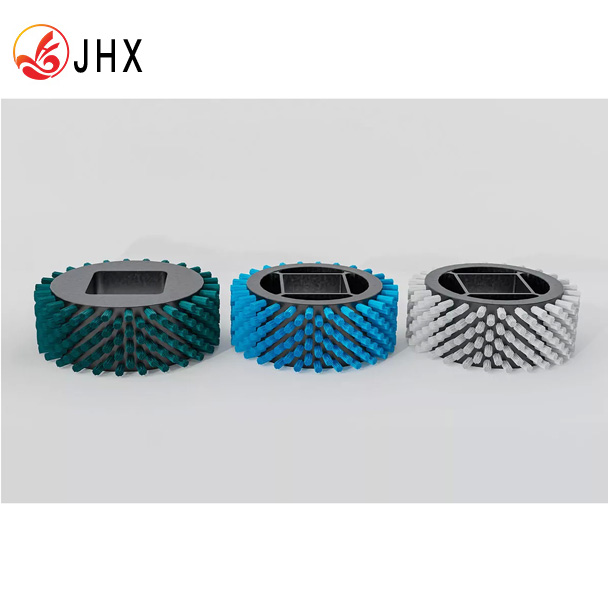

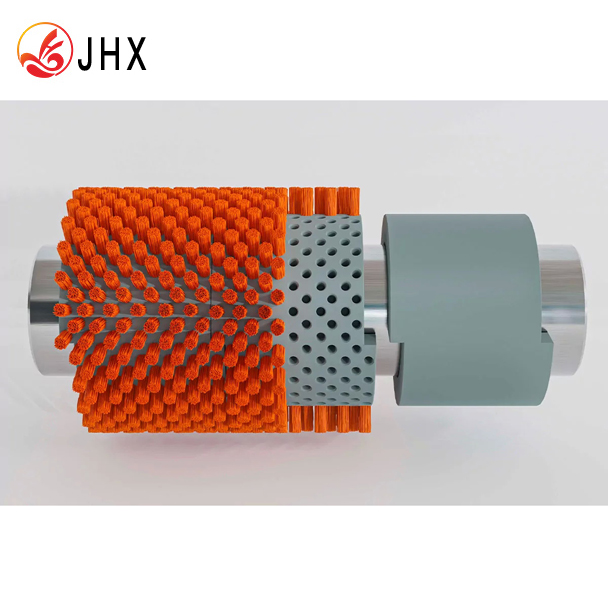

Anti-static nylon cylindrical brushes are designed to eliminate static electricity while cleaning, polishing, or transporting sensitive materials. The filaments are made from conductive or static-dissipative nylon, ensuring safe discharge of static buildup during operation. This makes them ideal for industries where dust attraction, sparks, or ESD (electrostatic discharge) could damage products or equipment.
Anti-Static Function: Conductive nylon filaments effectively discharge static electricity.
Durable Construction: Excellent wear resistance, chemical resistance, and flexibility.
Safe for Sensitive Surfaces: Prevents electrostatic damage to electronics, films, and coated surfaces.
Customizable Design: Brush diameter, length, filament density, and core materials can be customized.
Stable Performance: Maintains anti-static properties over a long service life.
Electronics Industry: PCB cleaning, removing dust without generating static.
Glass Manufacturing: Prevents dust attraction on glass panels.
Plastic & Film Processing: Avoids film clinging and dust contamination.
Printing & Coating Lines: Keeps surface clean and static-free for better coating adhesion.
Packaging Lines: Prevents static buildup that causes jams or particle attraction.
| Parameter | Specification Range | Notes |
|---|---|---|
| Brush Diameter | 50 mm – 300 mm | Custom sizes available |
| Brush Length | 100 mm – 3000 mm | Depending on conveyor/machine size |
| Filament Type | Conductive Nylon 6 / 66 / 610 | Surface resistivity: 10³–10⁸ Ω |
| Filament Diameter | 0.1 mm – 0.8 mm | Finer filament = gentler brushing |
| Core Material | Steel, Aluminum, Plastic | Shaft ends available on request |
| Surface Resistivity | 10³ – 10⁸ Ω | Ensures controlled static discharge |
| Max Operating Temp. | 120 °C – 150 °C | Depends on nylon grade |
