Grade: Industrial Grade
Warranty: Six Months
Type: Turret Punch Press Brush
Customization Available: OEM, ODM
Bristle Length: Customizable
Origin: Anhui, China
Brand: JHX Brush
Bristle Material: Nylon
Function: Cleaning

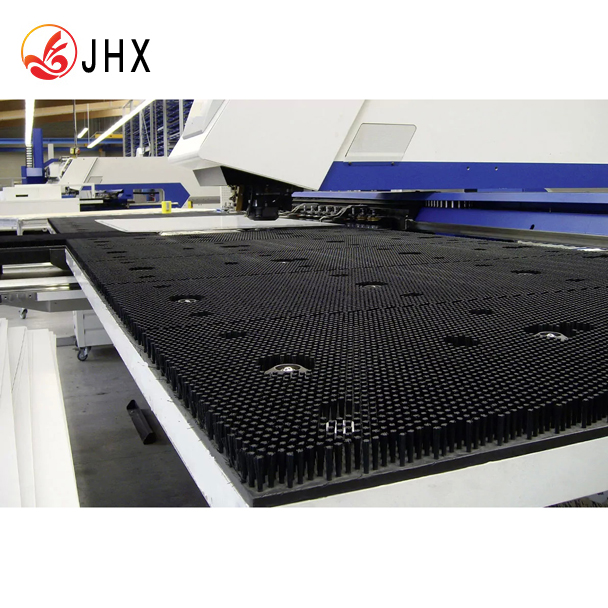

Turret punch press brush plates are specially designed brush-covered panels that replace conventional worktable plates in CNC turret punch machines.
The dense brush surface supports the sheet metal workpiece during punching operations, preventing scratches, reducing vibration, and ensuring smooth material feeding.
Scratch-Free Support: Soft yet durable brush surface protects sensitive sheet metal from marks.
Noise & Vibration Reduction: Minimizes operational noise and stabilizes workpieces.
Improved Feeding: Smooth brush surface reduces friction, enabling faster, easier sheet movement.
Durable Construction: High-density nylon or PP filaments, firmly fixed on a steel or plastic base.
Customizable: Available in various thicknesses, filament lengths, densities, and panel sizes to fit most turret punch models.
Easy Replacement: Modular design allows quick installation and maintenance.
CNC turret punch presses (Amada, Trumpf, LVD, Murata, Finn-Power, etc.)
Sheet metal processing lines where scratch prevention is critical
Thin or coated sheet handling (aluminum, stainless steel, pre-painted metal sheets)
| Parameter | Specification Range | Notes |
|---|---|---|
| Panel Size | 300 × 300 mm – 600 × 600 mm | Custom sizes for different machines |
| Brush Height | 20 mm – 60 mm | Trim height based on sheet thickness |
| Filament Material | Nylon, PP | Nylon preferred for durability & smoothness |
| Filament Diameter | 0.3 – 1.0 mm | Finer for thin sheets, thicker for heavy sheets |
| Base Material | Steel Plate, Plastic Panel | Anti-rust treatment available |
| Brush Density | Medium / High | High density for delicate sheets |
| Operating Temp. | Up to 120 °C | Suitable for metal processing environments |
